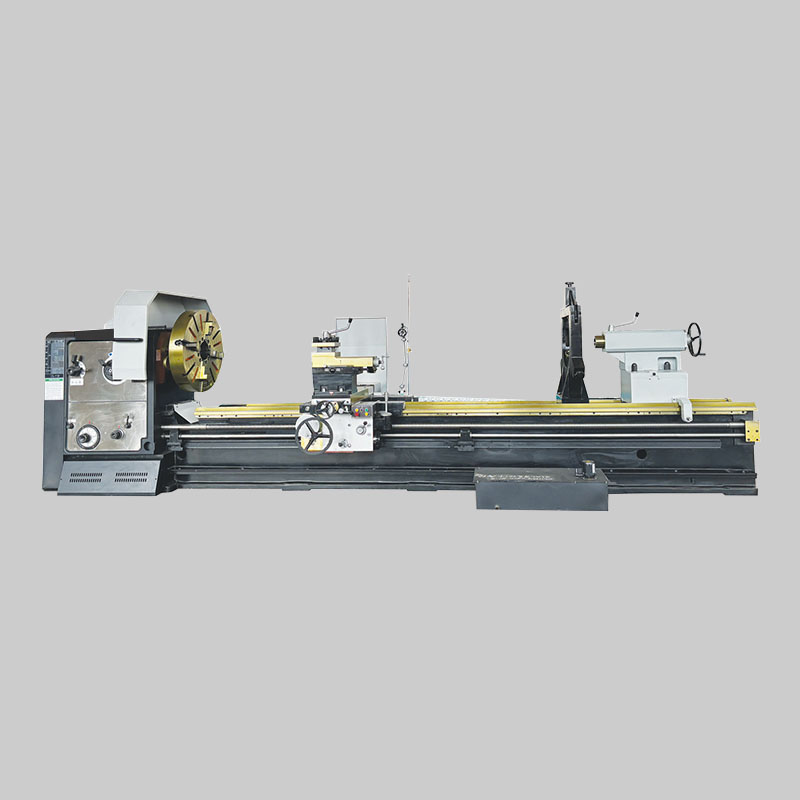

CW6180/HEAVY DUTY LATHE

PERFORMANCE CHARACTERISTICS

This series of machine tools are universal type lathes, using a separated structure.suitable for high-speed steel and carbide steel cutting tolls for different materials of the shat parts,cylindrical and disk-shapedparts, turning outer circle, end face,grooving, cutting,boring holes and other processes. The bed has high rigidity,slide plate, knife holder,saddle and can move quickly addition.this series of machine tools has the characteristics of high rigidity,high efficiency safely reliability and easy operation etc.

PERFORMANCE CHARACTERISTICS

There is a safety mechanism in the sliding box to prevent the lathe from being damage due to overload. The upper tool post can be used to flexible turning short cone,long cones turning can be achieved by compound motions of longitudinal feed and upper tool post,high frequency quenching of the guide rails of the bed can increase the service life of the guide rails,lathe control handle concentrated, convenient and flexible for us.

This series of lathes have large power, strong rigidity and a widerange of spindle speed adjustment, suitable for powerful orhigh-speed cutting,good at machining face,outer circleinner holeand various threads of metric.inch. module, diametrical pitchthreads and can undertake darling, Nesting boring and otherprocessing.There is a safety mechanism in the sliding box to preventthe lathe from being damage due to overload. The upper tool post canbe used to flexible turning short cone,long cones turning can be achievedby compound motions of longitudinal feed and upper tool post,highfrequency quenching of the guide rails of the bed can increase the servicelife of the guide rails,lathe control handle concentrated, convenient and flexible for us.

CW6180

SPECIFICATIONSUnitCW6180
ax.swing over bedmmФ800
Max.turning diameter on the tool holdermmФ480
Max.swing diameter over gapmmNo gap
Maximum length of the workpiecemm1500,3000,5000,6000,8000,10000,12000,14000,16000,18000,20000
Spindle bore and nose headmm105:A2-11
Spindle bore front taper and centre tapermmmetric 120:Morse5
Spindle speed and ranger/min7.5-1000:18kinds
Longitudinal feed quantities steps and rangemm/r64kinds:0.05-24.3
Range1 :10.1-1.52
Range16 :11.6-24.3
Trace feed range through using gear changemm/r0.06-0.912
The ratio of transverse feeding and longitudinal feedmm/r1/2
Rapid traverse speed of the saddlemm/r4000
Machine screw pitchmm12(Metric) 1/2″(inch)
Metric thread species and scopemm501-240 (another 14 non-standard threads With 14 non-standard threads)
Inch thread species and scopekinds/T.P.I26kinds:14-1 t.p.i
Module thread species and rangekinds/rm53kinds;0.5-120
Diametral pitch screw species and scopekinds /DP24kinds:28-1 DP
Cross travel of lower knife restmm500
Cross travel of upper knife restmm200
Tailstock quill travelMm250
Tailstock quill taperMT 6#
Main motor powerkw11
Rapid traverse motorkw1.1
Coolant pump powerkw90
Guide way widthMm550
Max .load capacitykg2000
