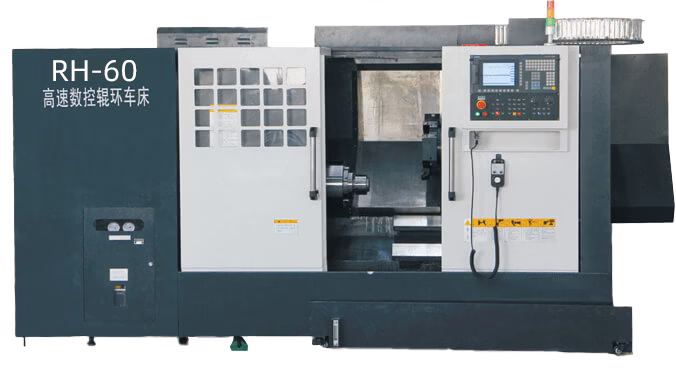

RH-60/T.C RINGS TURNING&GRINDING MAHCINE
Technical requirements
1、Siemens or Fanuc numerical control system
2、The headstock box adopts precision spindle unit with famous brand bearings, maintenance-free for life;
3、Powerful main motor with stepless speed regulation, suitable for heavy-duty flexible machining;
Technical requirements
4、Feeding system adopts high-precision ball screw and ball screw support bearing of famous brand, driving servo motor direct connection, which ensures good rigidity, high positioning accuracy and fast response speed of the machine tool;
5、The bed is 45 degrees inclined structure, suitable for high-speed heavy cutting;
6、Electrical components mainly use brand-name products, electrical box with air-conditioning.
The bed Foundation is whole box structure, it is made of high standard cast iron (HT300) a molding casting, after the second aging treatment, stable performance; 45 degree oblique back bed, high rigidity ,chip removal convenient, bed guide rail by quenching Processing and precision grinding, good precision, suitable for heavy cutting. Skateboard sliding surface using plastic veneer process, so that the feed system stiffness, friction and other dynamic and static, static characteristics in the best condition. With a separate sink, completely eliminate the leakage, easy maintenance. Suitable for high-speed steel roll ring, tungsten carbide roller ring and other high-precision ring parts of the precision machining.
| Processing Scope | Item | Unit | RH60 |
| Max.sing diameter over bed | mm | Ф800 | |
| Max. turning diameter | mm | Ф600 | |
| Main spindle | Spindle Top Designator | ||
| A2-11 | |||
| Spindle through-hole diameter | mm | Ф95 | |
| Spindle front taper hole | |||
| 1:20 | |||
| Spindle speed(stepless) | r/min | 0-1000 | |
| Travel and Feeding | X-axis travel | mm | 340 |
| Z-axis travel | mm | 650 | |
| X-direction rapid traverse | mm/min | 12000 | |
| Z-direction rapid traverse | mm/min | 15000 | |
| X/Z axis minimum feed capacity | mm | 0.001/0.01/0.1 | |
| X、Z feed speed | mm/min | 0-5000 | |
| X、Z manual feed speed | mm/min | 0-1260 | |
| Tool holder | Number of tool positions | ||
| 4 | |||
| Time of tool exchange | sec | 1.5 | |
| Tool mounting dimensions | mm | 40×40 | |
| Motor | Spindle motor | KW | 18.5 |
| X-axis feeding motor | KW | AC2.3 | |
| Z-axis feeding motor | KW | AC3.3 | |
| Cooling system | Motor type | L | 200 |
| Coolant capacity | KW(1HP) | 0.18 | |
| Dimension and Weight | Installation area | mm | 3700×1850×2100 |
